DI2BO:

After over 6 years of operation, the license for the experimental radio station DI2BO has expired. A final transmission on 439.015 kHz was made December 31st, 2012 between 09.00 and 23.00 UTC with the following wording:

vvv vvv vvv de di2bo di2bo -
this is the final transmission of the experimental radio station di2bo in peine near hannover/germany, jo52bh, operated by dk8kw - experimental radio tranmsissions for propagation testing purposes have been conducted by di2bo and other stations since april 2006 - the results of the studies have assisted to get access to the new amateur radio band at 472 khz. the license expires today at midnight - pse send reception reports via email to mf at qru.de - happy new year 2013 and cu on mf, vy 73 de dk8kw + de di2bo
-



DI2BO Current Status:

License expired, DI2BO is QRT. Thanks for all the support and reception reports over the years!


DI2BO - ZweiteVersuchsfunkstelle auf Mittelwelle QRV


Bereits seit Anfang 2005 läuft eine Ausbreitungsstudie auf Mittelwelle. Unter dem Rufzeichen DI2AG betreibt Walter, DJ2LF in Dormitz  bei Nürnberg auf 505.1 kHz eine Versuchsfunkstelle. Ergänzend hierzu wurden jetzt von der Bundesnetzagentur weitere Versuchsfunkstellen auf 505.1 kHz genehmigt. Eine davon  wird unter dem Rufzeichen DI2BO durch Holger, DK8KW in Peine bei Hannover (JO52BH) betrieben.

Es gelten die gleichen technischen Bedingungen wie für DI2AG, d.h. Versuchsfunkbetrieb auf 505.015 kHz plus/minus 100 Hz mit maximal 9 Watt ERP. Zusätzlich ist für DI2BO noch die Frequenz 440 kHz genehmigt. Die Bakenaussendungen werden so koordiniert werden, daß beide Baken gemeinsam beobachtetwerden können um so Rückschlüsse auf die unterschiedlichenAusbreitungswege ziehen zu können. Ein entsprechendes koordiniertesSendeschema wird zur Zeit erstellt. Es sind auch Verbindungen zwischen beidenStationen geplant.

Die Station bei DI2BO besteht aus einem Seefunksender DEBEG 7121 mit maximal 130 Watt Ausgangsleistung und eine 18 Meter hohen Schirmantenne mit 5 Top-Load Radials. Theoretisch ist mit dieser Konfiguration eine effektiv abgestrahlte Leistung von etwa 5 Watt ERP zu erwarten.

Auch wenn es sich bei dem Betrieb mit DI-Rufzeichen nicht um Amateurfunkanwendungen handelt sind Empfangsberichte von allen Interessierten herzlich willkommen.

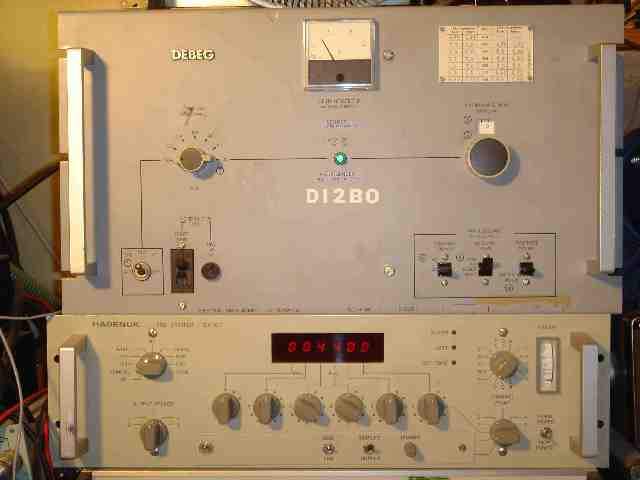

DEBEG 7121

DI2BO - Second German ExperimentalRadio Station on Medium Wave

Since January 2005 tests are conducted to study the special propagation conditions on medium wave. Walter, DJ2LF in Dormitz near Nuernberg operates the experimental station DI2AG on 505.1 kHz. Supplementary to these test transmissions the German radio authorities issuesd further licenses for an experimental radio stations, one of  which is oeprated by Holger ('Geri'), DK8KW in Peine near Hannover (JO52BH). The callsign of this station is DI2BO.

The permiotted operating conditions of DI2BO are the same as for DI2AG. Test transmissions will be conducted on 505.1 kHz plus/minus 100 Hz with a maximum radiated power of 9 Watt ERP. Additionally, DI2BO is licensed to transmit on 440 kHz. All beacon transmissions will be coordinated in a way so that they can be observed simultaneously to study the porpagation from both locations at the same time. Also two-way contacts between bothexperimental stations are planned.

DI2BO is using a marine radio DEBEG 7121 with about 130 Watt outpt powerand an 18 meter high umbrella antenna with 5 top load radials. Theoreticallythis configuration should result in a maximum effective radiated power ofaround 5 Watt ERP.

Although DI-callsigns are not part of the amateur radio service, reception reports from radio amateurs and all other interested parties are highly welcome.
